Product Summary

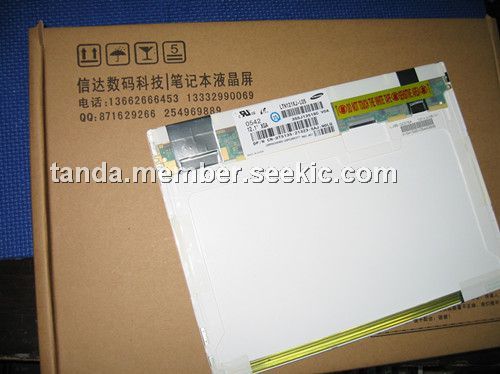

The LTN121XJ-L05 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD)that uses amorphous silicon TFT as a switching devices. This model LTN121XJ-L05 is composed of a TFTLCD panel, a driver circuit and a back-light system. The resolution of a 12.1 inch contains 1024 x 768 pixels and can display up to 262,144colors. The applications of the LTN121XJ-L05 include Notebook PC and desktop monitors and If the usage of this product is not for PC application, but for others, please contact SEC.
Parametrics
LTN121XJ-L05 absolute maximum ratings: (1)storage temperature, Tstg: -20 to 60℃; (2)operating temperature, Topr: 0 to 50℃; (3)shock (non-operating), Snop: 210G max; (4)vibration (non-operating), Vnop: 2.41G max.
Features
LTN121XJ-L05 features: (1)Ultra Thin and light weight; (2)High contrast ratio; (3)XGA (1024x768 pixels) resolution; (4)Low power consumption; (5)DE (Data enable) only mode; (6)3.3V LVDS Interface; (7)On board EDID chip; (8)Auto Recovery Function; (9)RoHS Compliance.

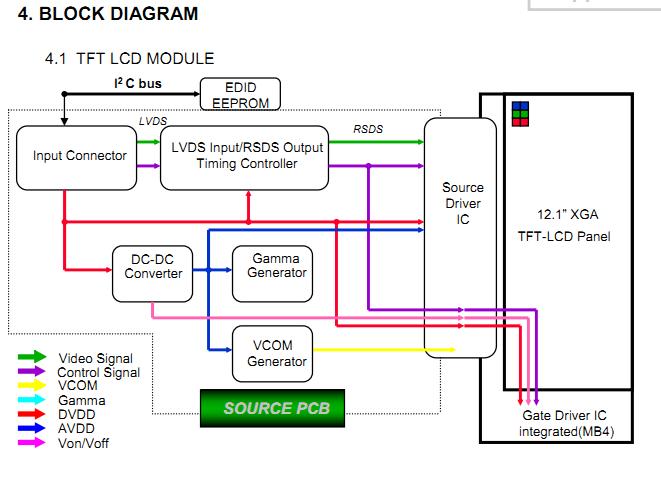

Diagrams
 |
