Product Summary

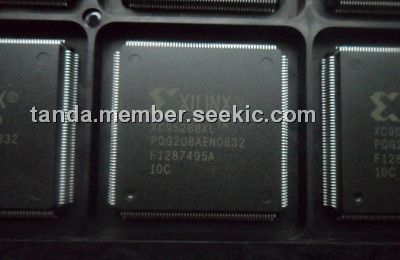

The XC95288XL-10PQG208C is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of 16 54V18 Function Blocks, providing 6,400 usable gates with propagation delays of 6 ns.
Parametrics
XC95288XL-10PQG208C absolute maximum ratings: (1)VCC Supply voltage relative to GND -0.5 to 4.0 V; (2)VIN Input voltage relative to GND(1) -0.5 to 5.5 V; (3)VTS Voltage applied to 3-state output(1) -0.5 to 5.5 V; (4)TSTG Storage temperature (ambient) -65 to +150 ℃; (5)TSOL Maximum soldering temperature (10s @ 1/16 in. = 1.5 mm) +260 ℃; (6)TJ Junction temperature +150 ℃.
Features
XC95288XL-10PQG208C features: (1)6 ns pin-to-pin logic delays; (2)System frequency up to 208 MHz; (3)288 macrocells with 6,400 usable gates; (4)Fast concurrent programming; (5)Slew rate control on individual outputs; (6)Enhanced data security features; (7)Pin-compatible with 5V-core XC95288 device in the 208-pin HQFP package.

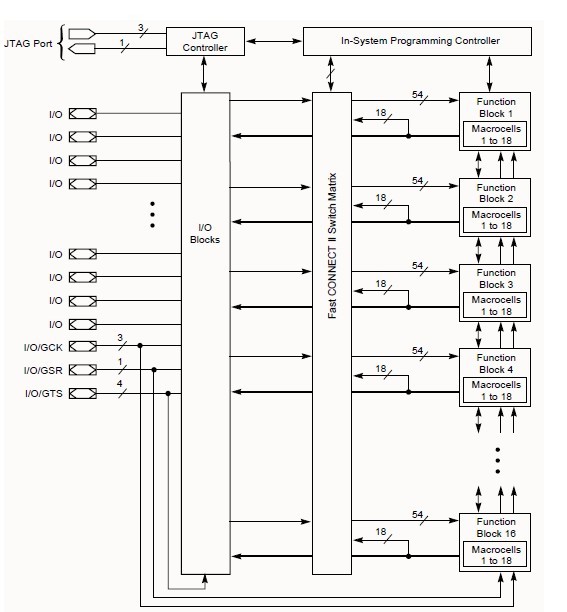

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC95288XL-10PQG208C |
|
IC CPLD 6.4K 288MCELL 208-PQFP |
Data Sheet |
|
|
||||||||||||||||
