Product Summary

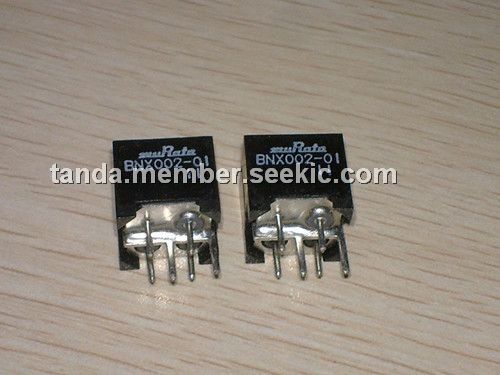

The BNX002-01 is a block type EMIFIL LC combined type device.

Parametrics

BNX002-01 absolute maximum ratings: features: (1)Rated Voltage: 50Vdc; (2)Withstand Voltage: 125Vdc; (3)Rated Current: 10A; (4)Insulation Resistance(min.): 100M ohm; (5)Insertion Loss: 1MHz to 1GHz:40dB min. (20 to 25 degrees C line impedance=50 ohm).

Diagrams

BNX002-01 Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BNX002-01
BNX002-01
Murata
EMI Filters 50V 10A EMI FILTER
Data Sheet
0-1: $4.57
1-10: $4.06
10-25: $3.91
25-50: $3.56
