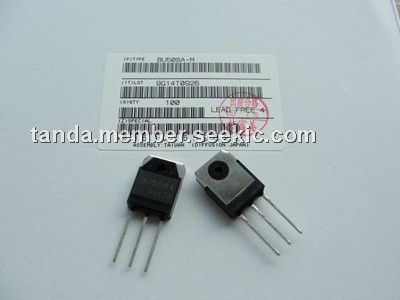

Product Summary
The BU508A is a high voltage fast-switching NPN power transistor. It is manufactured using Multiepitaxial Mesa technology for cost-effective high performance and use a Hollow Emitter structure to enhance switching speeds.
Parametrics
BU508A absolute maximum ratings: (1)Collector-Emitter Voltage (VBE = 0): 1500 V; (2)Collector-Emitter Voltage (IB = 0): 700 V; (3)Emitter-Base Voltage (IC = 0): 10 V; (4)Collector Current: 8 A; (5)Collector Peak Current (tp < 5 ms): 15 A; (6)Total Dissipation at Tc = 25 ℃: 125 W; (7)Visol, Insulation Withstand Voltage (RMS) from All Three Leads to Exernal Heatsink: 2500 V; (8)Storage Temperature: -65 to 150 ℃; (9)Max. Operating Junction Temperature: 150 ℃.
Features
BU508A features: (1)STMicroelectronics preferred salestypes; (2)high voltage capability (> 1500 V); (3)fully insulated package (U.L. compliant) for easy mounting.

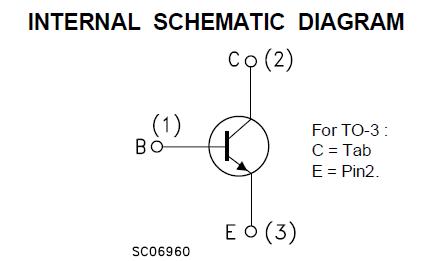

Diagrams
