Product Summary
The L7806CV three-terminal positive regulator is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7806CV can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making L7806CV essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, the L7806CV can be used with external components to obtain adjustable voltage and currents.
Parametrics
L7806CV absolute maximum ratings: (1)VI, DC Input Voltage: for VO= 5 to 18V: 35V; for VO= 20, 24V: 40V; (2)IO, Output Current: Internally Limited; (3)Ptot, Power Dissipation: Internally Limited; (4)Tstg, Storage Temperature Range: -65 to 150 ℃; (5)Top, Operating Junction Temperature Range: for L7800: -55 to 150℃; for L7800C: 0 to 150℃.
Features
L7806CV features: (1)output current to 1.5A; (2)output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition soa protection.

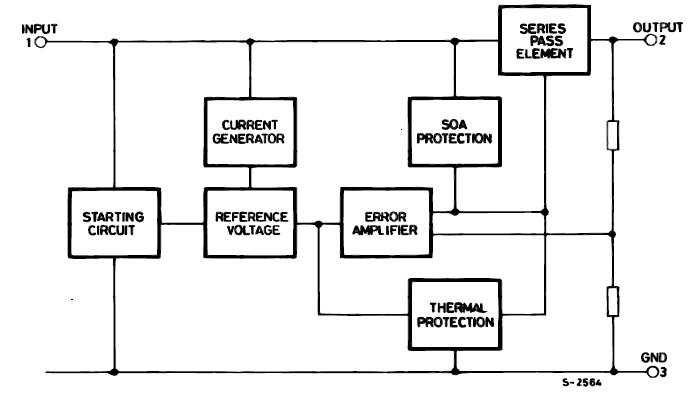

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L7806CV |
STMicroelectronics |
Linear Regulators - Standard 6.0V 1.5 |
Data Sheet |
|
|
||||||||||||
|
L7806CV-DG |
STMicroelectronics |
Linear Regulators - Standard Pos V Reg Dual Guage 1.5A 35V to 40V DC |
Data Sheet |
|
|
||||||||||||
