Product Summary

The PSD312-B-70J is a low cost field programmable microcontroller peripheral. The low cost PSD312-B-70J integrates high-performance and user-configurable blocks of EPROM, programmable logic, and optional SRAM into one part. The product also provides a powerful microcontroller interface that eliminates the need for external “glue logic”. The part integration, small form factor, low power consumption, and ease of use make PSD312-B-70J the ideal part for interfacing to virtually any microcontroller.

Parametrics

PSD312-B-70J absolute maximum ratings: (1)TSTG Storage Temperature: CERDIP: – 65 to + 150 ℃; PLASTIC: – 65 to + 125 ℃; (2)Voltage on any Pin With Respect to GND: – 0.6 to + 7 V; (3)Programming Supply Voltage With Respect to GND: – 0.6 to + 14 V; (4)VCC, Supply Voltage With Respect to GND:–0.6 to + 7 V; (5)ESD Protection: >2000 V.

Features

PSD312-B-70J features: (1)Single Supply Voltage: 5 V±10%; (2)Up to 1 Mbit of EPROM; (3)Up to 16 Kbit SRAM; (4)Input Latches; (5)Programmable I/O ports; (6)Page Logic; (7)Programmable Security.

Diagrams

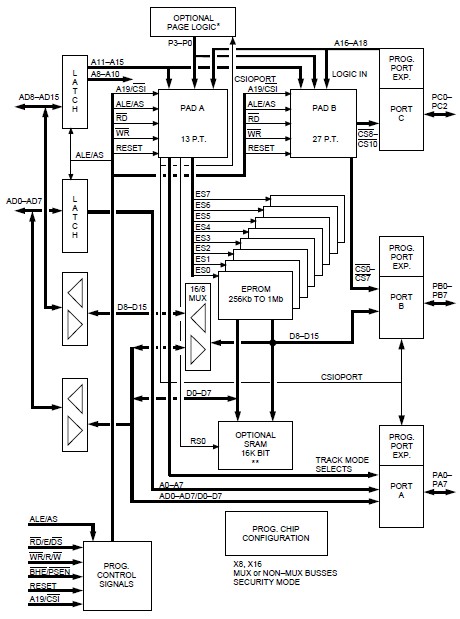

PSD312-B-70J Architecture

PSD301B-70J
PSD301B-70J

STMicroelectronics

SPLD - Simple Programmable Logic Devices PLCC-44 5V 256K 70NS

Data Sheet

Negotiable
PSD301B-70U
PSD301B-70U

STMicroelectronics

SPLD - Simple Programmable Logic Devices 5.0V 256K 70ns

Data Sheet

Negotiable
PSD302B-70J
PSD302B-70J

STMicroelectronics

SPLD - Simple Programmable Logic Devices U 511-ZPSD302B-70J

Data Sheet

Negotiable
PSD302B-70U
PSD302B-70U

STMicroelectronics

SPLD - Simple Programmable Logic Devices 5.0V 512K 70ns

Data Sheet

Negotiable
PSD303B-70J
PSD303B-70J

STMicroelectronics

SPLD - Simple Programmable Logic Devices 5V 1M 70ns

Data Sheet

Negotiable
PSD303B-70M
PSD303B-70M

STMicroelectronics

SPLD - Simple Programmable Logic Devices 5.0V 1M 70ns

Data Sheet

Negotiable
