Product Summary

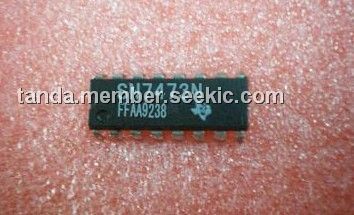

The SN7473N is a DUAL J-K flip-flop with clear. It contains two independent J-K flip-flops with individual J-K, clock, and direct clear inputs. J-K input of SN7473N is loaded into the masyer while the clock is high and transferred to the clave on the high-to-low transferred to the slave on the high-to-low transition.

Parametrics

SN7473N absolute maximum ratings: (1)supply voltage: 7 V; (2)input voltage: 5.5 V; (3)operating free-air temperature range: 0 to 70 ℃; (4)storage temperature range: -65 to 150 ℃.

Features

SN7473N features: (1)package options include plastic "small outline" package, flat packages, and plastic and ceramic DIPs; (2)dependable Texas instruments quality and reliability.

Diagrams

SN7473N logic diagram
