Product Summary

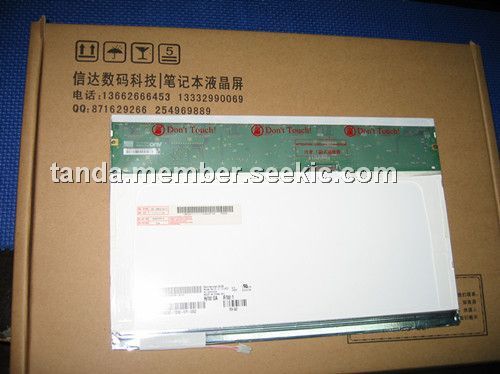

The B121EW01-V.0 is a 12.1 inch Wide XGA Color TFT LCD Module. This module is designed for a display unit of notebook style personal computer. The B121EW01-V.0 screen format is intended to support the SXGA (1280(H) x 800(V)) screen and 262k colors (RGB 6-bits data driver). All input signals are LVDS interface compatible. The B121EW01-V.0 does not contain an inverter card for backlight.
Parametrics
B121EW01-V.0 absolute maximum ratings: (1)Logic/LCD Drive Voltage,VDD: -0.3 to + 4.0 Volt; (2)Input Voltage of Signal, Vin: -0.3 to VDD + 0.3 Volt; (3)CCFL Current, ICFL: 7 mA; (4)CCFL Ignition Voltage, Vs: 1160 Vrms; (5)Operating Temperature, TOP: 0 to +50℃; (6)Operating Humidity, HOP: 5 to 95 %RH; (7)Storage Temperature, TST: -20 to +60℃; (8)Storage Humidity, HST: 5 to 95 %RH; (9)Vibration: 1.5 10-500 GHz; (10)Shock: 200 ,3Gms.
Features
B121EW01-V.0 features: (1)his specification applies to the 12.1 inch wide Color TFT/LCD Module B121EW01 V1 ; (2)This module is designed for a display unit of notebook style personal computer; (3)The screen format is intended to support the SXGA (1280(H) x800(V)) screen and 262k colors (RGB 6-bits data driver); (4)All input signals are LVDS interface compatible; (5)This module does not contain an inverter card for backlight.

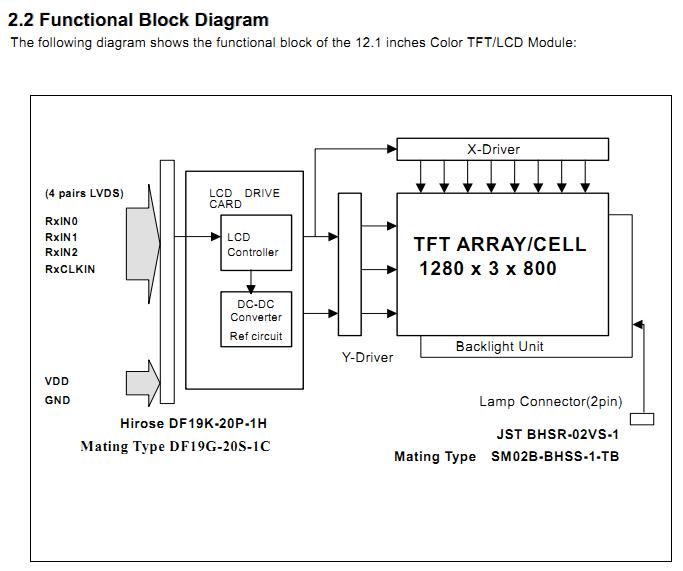

Diagrams
 |
