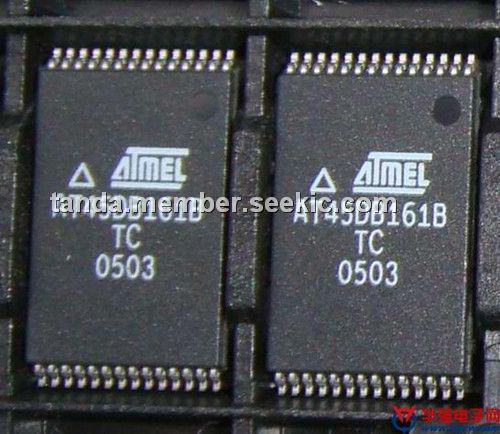

Product Summary

The AT45DB161B-TC is a 2.5-volt or 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 17,301,504 bits of memory are organized as 4096 pages of 528 bytes each. In addition to the main memory, the AT45DB161B-TC also contains two SRAM data buffers of 528 bytes each. The AT45DB161B-TC is optimized for use in many commercial and industrial applications where high density, low pin count, low voltage, and low power are essential. The AT45DB161B-TC oper- ates at clock frequencies up to 20 MHz with a typical active read current consumption of 4mA.

Parametrics

AT45DB161B-TC absolute maximum ratings: (1)Temperature under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.

Features

AT45DB161B-TC features: (1)Single 2.5V - 3.6V or 2.7V - 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible; (3)20 MHz Max Clock Frequency; (4)Page Program Operation: Single Cycle Reprogram (Erase and Program); 4096 Pages (528 Bytes/Page) Main Memory; (5)Supports Page and Block Erase Operations; (6)Two 528-byte SRAM Data Buffers – Allows Receiving of Data while Reprogramming of Nonvolatile Memory; (7)Continuous Read Capability through Entire Array: Ideal for Code Shadowing Applications; (8)Low Power Dissipation: 4 mA Active Read Current Typical; 2 μA CMOS Standby Current Typical; (9)Hardware Data Protection Feature; (10)100% Compatible to AT45DB161; (11)5.0V-tolerant Inputs: SI, SCK, CS, RESET and WP Pins; (12)Commercial and Industrial Temperature Ranges; (13)Green () Packaging Options.

Diagrams

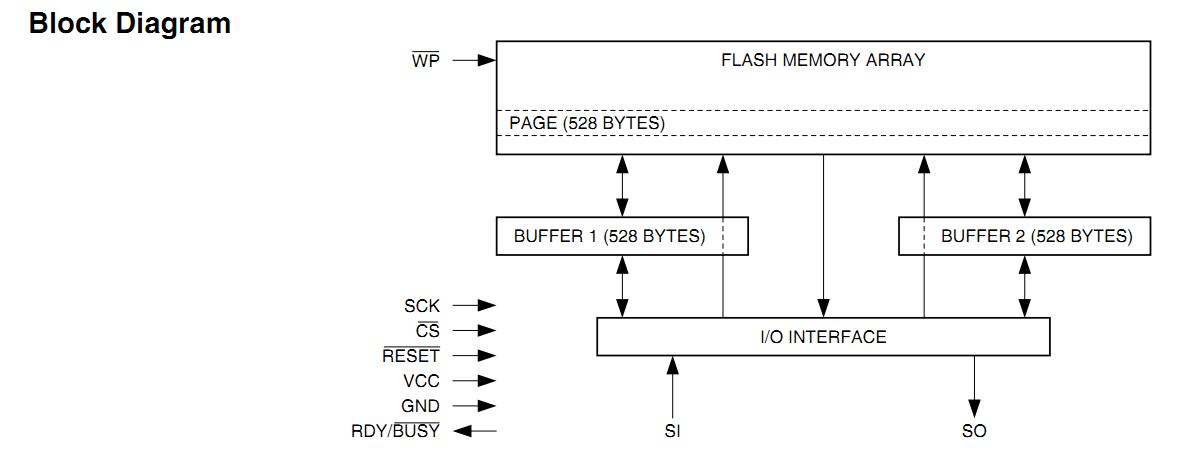

AT45DB161B-TC block diagram
