Product Summary

The DiskOnChip 2000 product line of the MD2202-D96-X is the second-generation of M-Systems DiskOnChip series of products. The MD2202-D96-X provides a small, single-chip, solid-state flash disk in a standard 32-pin DIP package. Combining a disk controller with flash memory on a single chip, the device is the solution where minimal weight, space, and power consumption are essential. In consequence, the MD2202-D96-X finds use today in a wide range of products, such as information appliances, set-top boxes, thin clients, thin servers, network computers, and embedded, portable computers. By placing MD2202-D96-X in a standard socket, physical space requirements are reduced. Unlike standard IDE drives, no cables or extra space are required. The device has no moving parts, resulting in significantly decreased power consumption and increased reliability. It is easy to use and reduces integration overhead. The MD2202-D96-X is therefore a very attractive alternative to conventional hard and floppy disk drives.

Parametrics

MD2202-D96-X absolute maximum ratings: (1)DC supply voltage VCCS: -0.5 to 4.6 V ; (2)Input pin voltage VIN: -0.5 to VCC + 0.3 V; (3)Input pin current IIN Not Specified: -10 to 10 mA at +25 ℃.

Features

MD2202-D96-X features: (1)Single-chip plug-n-play flash disk; (2)Low power, single 3.3V or 5V power supply; (3)16MByte (MB) to 1GByte (GB) capacity; (4)Simple, easy-to-integrate interface; (5)8KB sized memory window; (6)Boot OS capability; (7)Proprietary TrueFFS technology for full hard-disk emulation, high data reliability and maximum flash lifetime; (8)Software tools for programming, duplicating, testing, and debugging.

Diagrams

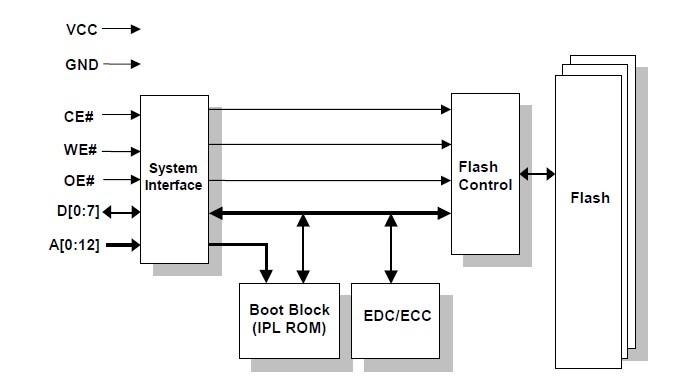

MD2202-D96-X block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

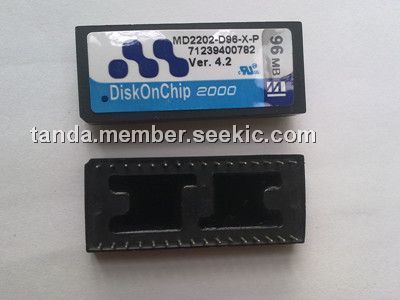

MD2202-D96-X
MD2202-D96-X


IC DOC2000 96MB 32-DIP

Data Sheet

Negotiable
MD2202-D96-X-P
MD2202-D96-X-P


IC DOC2000 96MB 32-DIP

Data Sheet

Negotiable
