Product Summary

The MC9S12DG128MPVE microcontroller unit (MCU) is a 16-bit device composed of standard on-chip peripherals including a 16-bit central processing unit (HCS12 CPU), 128K bytes of Flash EEPROM, 8K bytes of RAM, 2K bytes of EEPROM, two asynchronous serial communications interfaces (SCI), two serial peripheral interfaces (SPI), an 8-channel IC/OC enhanced capture timer, two 8-channel. The MC9S12DG128MPVE has full 16-bit data paths throughout.

Parametrics

MC9S12DG128MPVE absolute maximum ratings: (1)I/O, Regulator and Analog Supply Voltage, VDD5: -0.3 to 6.0V; (2)Digital Logic Supply Voltage, VDD: -0.3 to 3.0V; (3)PLL Supply Voltage, VDDPLL: -0.3 to 3.0V; (4)Voltage difference VDDX to VDDR and VDDA, DVDDX: -0.3 to 0.3V; (5)Voltage difference VSSX to VSSR and VSSA, DVSSX: -0.3 to 0.3V; (6)Digital I/O Input Voltage, VIN: -0.3 to 6.0V; (7)Analog Reference, VRH, VRL: -0.3 to 6.0V; (8)XFC, EXTAL, XTAL inputs, VILV: -0.3 to 3.0V; (9)input VTEST, TEST: -0.3 to 10.0V; (10)Storage Temperature Range, Tstg: –65 to 155℃.

Features

MC9S12DG128MPVE features: (1)HCS12 Core; (2)CRG (Clock and Reset Generator); (3)8-bit and 4-bit ports with interrupt functionality; (4)Two 8-channel Analog-to-Digital Converters; (5)Enhanced Capture Timer; (6)8 PWM channels; (7)Byte Data Link Controller (BDLC); (8)112-Pin LQFP and 80-Pin QFP package options.

Diagrams

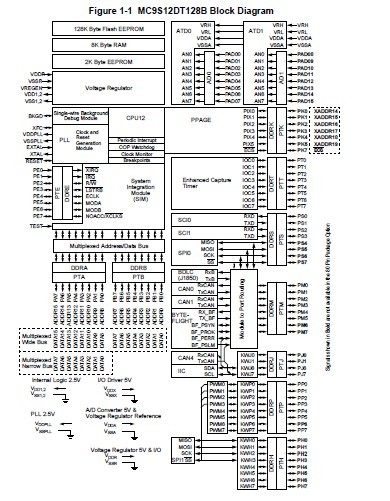

MC9S12DG128MPVE Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9S12DG128MPVE
MC9S12DG128MPVE
Freescale Semiconductor
16-bit Microcontrollers (MCU) 128K FLASH HCS12 MCU
Data Sheet
0-245: $6.97
MC9S12DG128MPVER
MC9S12DG128MPVER

IC MCU 128K FLASH 112-LQFP
Data Sheet
Negotiable
