Product Summary
The EP3C40F780C8N is a CYCLONE III FPGA. It offers a unique combination of high functionality, low power and low cost. Based on Taiwan Semiconductor Manufacturing Company (TSMC) low-power (LP) process technology, silicon optimizations and software features to minimize power consumption, the EP3C40F780C8N provides the ideal solution for your high-volume, low-power, and cost-sensitive applications.
Parametrics
EP3C40F780C8N absolute maximum ratings: (1)Supply voltage for internal logic: –0.5 to 1.8 V; (2)Supply voltage for output buffers: –0.5 to 3.9 V; (3)Supply (analog) voltage for PLL regulator: –0.5 to 3.75 V; (4)Supply (digital) voltage for PLL: –0.5 to 1.8 V; (5)Battery back-up power supply for design security volatile key register: –0.5 to 3.75 V; (6)DC input voltage: –0.5 3.95 V; (7)DC output current, per pin: –25 to 40 mA; (8)Electrostatic discharge voltage using the human body model: ±2000 V; (9)Electrostatic discharge voltage using the charged device model: ±500 V; (10)Storage temperature: –65 to 150 ℃.
Features
EP3C40F780C8N features: (1)Lowest power consumption due to: TSMC low-power process technology, Altera power-aware design flow; (2)Low-power operation offers the following benefits: Extended battery life for portable and handheld applications, Reduced or eliminated cooling system costs, Operation in thermally-challenged environments; (3)Hot-socketing operation support.

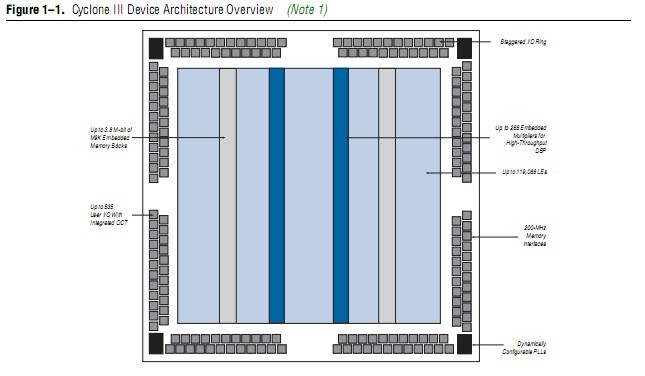

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP3C40F780C8N |
|
IC CYCLONE III FPGA 40K 780FBGA |
Data Sheet |
|
|
||||||
