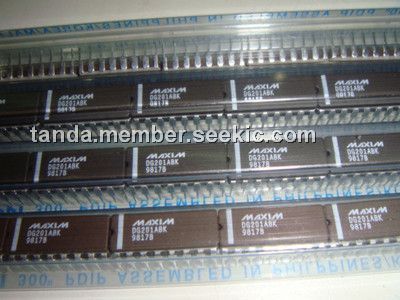

DG201ABK

quad SPST analog switch, CDIP16, -25V, latch-proof, low ON resistance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~0.01 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~0.01

PartNumber:: DG201ABK

Brand:: Maxim Integrated Products - Maxim | Pack: CDIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kelly's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-20

From Other Seller

Part Number:DG201ABK
US $0.00 - 0.01
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

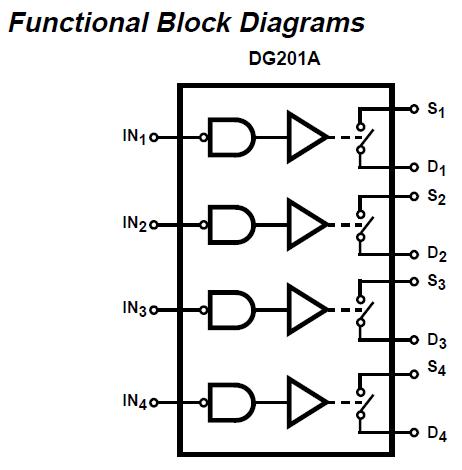

The DG201ABK quad SPST analog switch is designed using Intersil’s 44V CMOS process. It is a latch-proof and feature breakbefore-make switching. Designed to block signals up to 30VP-P in the OFF state, the DG201ABK offers the advantages of low ON resistance (≤175Ω), wide input signal range (±15V) and provide both TTL and CMOS compatibility.

Parametrics

DG201ABK absolute maximum ratings: (1)V+ to V-: 44V; (2)V- to Ground: -25V; (3)VIN to Ground: (V-) -2V to (V+) +2V; (4)VS or VD to V+: +2 to (V-) -2V; (5)VS or VD to V-: -2 to (V+) +2V; (6)Current, any Terminal Except S or D: 30mA; (7)Continuous Current, S or D: 20mA; (8)Peak Current, S or D (Pulsed 1ms, 10% Duty Cycle Max): 70mA.

Features

DG201ABK features: (1)Input Signal Range: ±15V; (2)Low rDS(ON) (Max): 175Ω; (3)TTL, CMOS Compatible; (4)Latch-Up Proof; (5)True Second Source; (6)Maximum Supply Ratings: 44V; (7)Logic Inputs Accept Negative Voltages.
