Product Summary
The ULN2003APG is a high-voltage, high-current darlington driver comprised of seven NPN darlington pairs. The device features integral clamp diodes for switching inductive loads. The applications of the ULN2003APG include relay, hammer, lamp and diaplay drivers.
Parametrics
ULN2003APG absolute maximum ratings: (1)Output sustaining voltage: -0.5~50 V ; (2)Output current: 500 mA/ch ; (3)Input voltage: -0.5~30 V ; (4)Clamp diode reverse voltage: 50 V ; (5)Clamp diode forward current: 500 mA ; (6)Power dissipation: APG: 1.47 W; (7)Operating temperature: -40~85 ℃; (8)Storage temperature: -55~150 ℃.
Features
ULN2003APG features: (1)Output current (single output): 500 mA max; (2)High sustaining voltage output: 50 V min; (3)Output clamp diodes; (4)Inputs compatible with various types of logic; (5)Package Type-APG: DIP-16pin; (6)Package Type-AFWG: SOL-16pin.

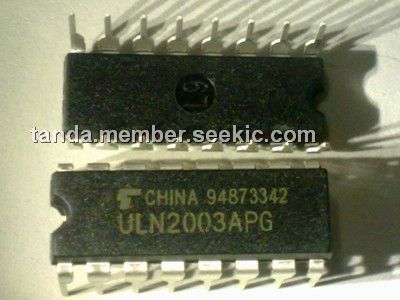

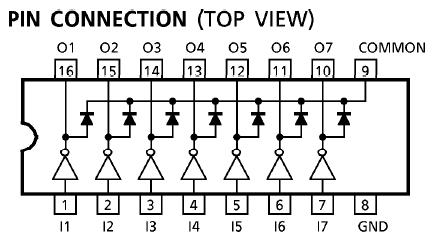

Diagrams
